High Accuracy Vision Measuring Machine / Optical Video Measuring Equipment

Name: High Accuracy Vision Measuring Machine Optical Video Measuring Equipment
Brand: Sinowon
Price: 1 USD

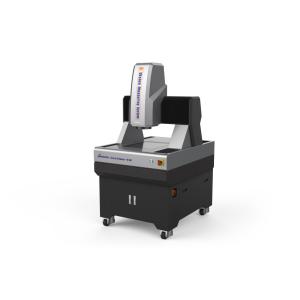

Buy cheap High Accuracy Vision Measuring Machine / Optical Video Measuring Equipment product

Brand Name : Sinowon

Model Number : AutoVision432

Certification : CE

Place of Origin : China DongGuan

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 100

Delivery Time : 30 days

Packaging Details : polywood

X/Y-axis Travel : 400x300mm

Z-axis Travel : 200mm

X/Y/Z3-axis Linear Scale（2.5D） : Imported Open Linear Scale，resolution：0.0005mm

Guidance Mode : Precision linear guide, double-track double slider guide

Operation Mode : Remote controller, mouse operation, automatic detection program

Repeatability : ±2um

Load Capacity : 30Kg

Video System : Import 1/2"Color CCD Camera

Contact Now

High Accuracy Optical Measuring Machine Video Measuring Machine

Application:

Cutting, touch screen, mobile phones, medical equipment, PCB, Film, electronic carrier tape, rubber, clocks, gears, mechanical processing, automobile and motorcycle parts, bearings, motors, precision hardware, tools, electronic components and other industries and research institutes, universities, institutions and enterprises measurement measuring laboratory and production line size detection products.

Products Characteristic:

High precision Jinan Qing marble base and pillar, to ensure high stability and accuracy.
High precision imported screw and servo motor, to ensure the error of return travel is within 2um.
High accuracy imported patched optical scale coordinate with working stage, to ensure the accuracy is within 3+L/200mm.
High definitive auto zoom lens and high resolution imported color camera, to ensure no undistorted image and get a real image.
With long using-life, high brightness 5-ring 8-division LED surface cold illumination and contour parallel LED cold illumination.
Built-in intelligent lighting adjustment module can be free to control and memory lighting brightness in the any area of 5 ring 8-division.
With powerful function auto measuring software iMeasuring4.1, can highly improve the quality control.
With optional imported 3D touch probe, which can update it to Fully Auto 3D contact measuring machine.
Optional FexQMS measuring data analysis and real time monitoring software can enhance process control and reduce material consumption.

Technical Specification:

Product Name		Fully Auto Video Measuring Machine
2.5D Model		AutoVision432
Code#		520-121
X/Y-axis Travel		400x300mm
Z-axis Travel		200mm
X/Y/Z3-axis Linear Scale(2.5D)		Imported Open Linear Scale,resolution:0.0005mm
Guidance Mode		Precision linear guide, double-track double slider guide
Operation Mode		Remote controller, mouse operation, automatic detection program
Accuracy		XY-axis:≤3+L/200(um)
		Z-axis:≤4+L/200(um)
Repeatability		±2um
Video System		Import 1/2"Color CCD Camera
		6.5X Auto coxial zoom lens
		Magnification:0.7X-4.5X；Video Magnification:22X~145X
Illumination	Contour	LED Parallel Cold Illumination
	Surface	Adjustable 5-ring 8-division256-grades LED Cold Illumination
Software System		2.5D iMeasuring 4.1 Fully-auto measuring software
3D Measurement		Optional iMeasuring 3.1 3DMeasuring software and imported probe
Load Capacity		35Kg
Dimension		10608201680mm
Weight		650Kg

Standard Delivery:

Product Name	Code#	Product Name	Code#
Fully-auto measuring software	IM 4.1	Electric Coaxial Zoom Lens	421-161
Calibration Block	581-801	5-ring 8-division LED Illumination	425-141
Movement Control	526-111	Contour Parallel LED Cold Illumination	425-131
Imported 0.5um Linear Scale	581-201	1/2”Color Camera	484-123
Data Processor	564-301	Video Capture Card	527-131
CCD Image Navigation	581-331	PC/Monitor	/
Operation Handle	581-871	Instructions	/

Optional Accessories:

Product Name	Code#	Product Name	Code#
Imported MCP Probe	581-721	Manual Coaxial Lens	421-121
Imported Laser Sensor	581-361	2x Auxiliary Lens	423-200
3D Measuring Software	IM4.2	0.5 Auxiliary Lens	423-050
